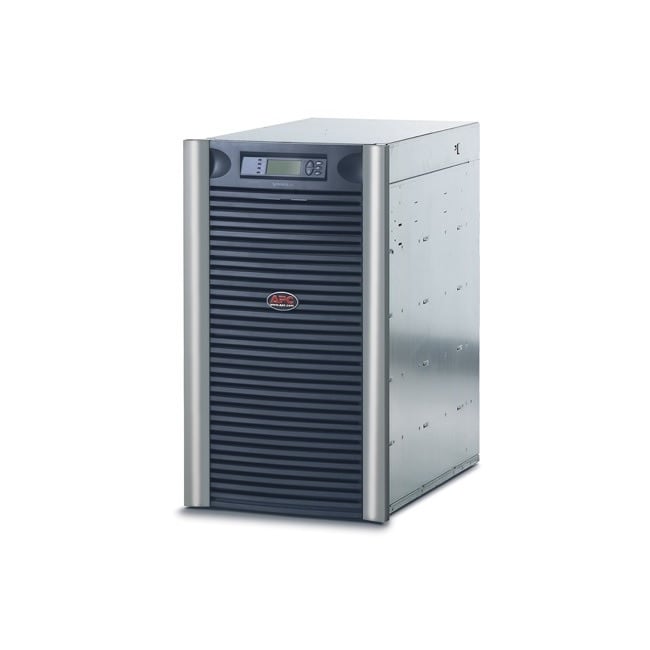

APC Symmetra LX SYA12K16RMI M013


Tersedia di backorder

  • APC Symmetra LX 12kVA Scalable to 16kVA
  • Output Capacity: 8.4 KWatts / 12.0 kVA
  • 3 hour typical recharge time
  • Output Connections: (1) Hard Wire 3-wire (H N + G), (8) IEC 320 C13, (10) IEC 320 C19
  • 2 years repair or replace warranty

Rp 163,899,000

Tersedia di backorder

Product Name: APC Symmetra LX SYA12K16RMI
Status: Call us for pricing and stock details
Nominal Output Voltage: 230V
Output Voltage: Configurable for 220, 230 or 240 nominal output voltage
Output frequency (Sync to mains): 47-63 Hz
Output Voltage Distortion: Less than 5% at full load
Output Connections: (1) Hard Wire 3-wire (H N + G) (Battery Backup)
(8) IEC 320 C13 (Battery Backup), (10) IEC 320 C19 (Battery Backup)
Output power capacity: 8.4 KWatts / 12.0 kVA
Max Configurable Power (Watts): 11.2 KWatts / 16.0 kVA
Bypass: Internal Bypass (Automatic and Manual)
Nominal Input Voltage: 230V, 400V 3PH
Input voltage range for main operations: 155-276, 290-480 (3:1)V
Other Input Voltages: 220V, 240V, 380V, 415V
Input Frequency: 45-65 Hz (auto sensing)
Input Connections: Hard Wire 3 wire (1PH+N+G)
Hard Wire 5-wire (3PH + N + G)
Interface ports: DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
Control Panel: Multi-function LCD status and control console
Maximum Dimensions (W x D x H): 47.2 x 68.8 x 83.8 cm
Net Weight: 242.74KG
Battery: Maintenance-free sealed Lead-Acid battery with suspended electrolyte
leakproof, 3 hour typical recharge time, includes 3 battery modules
Warranty: 2 years repair or replace
